FIELD EARTH

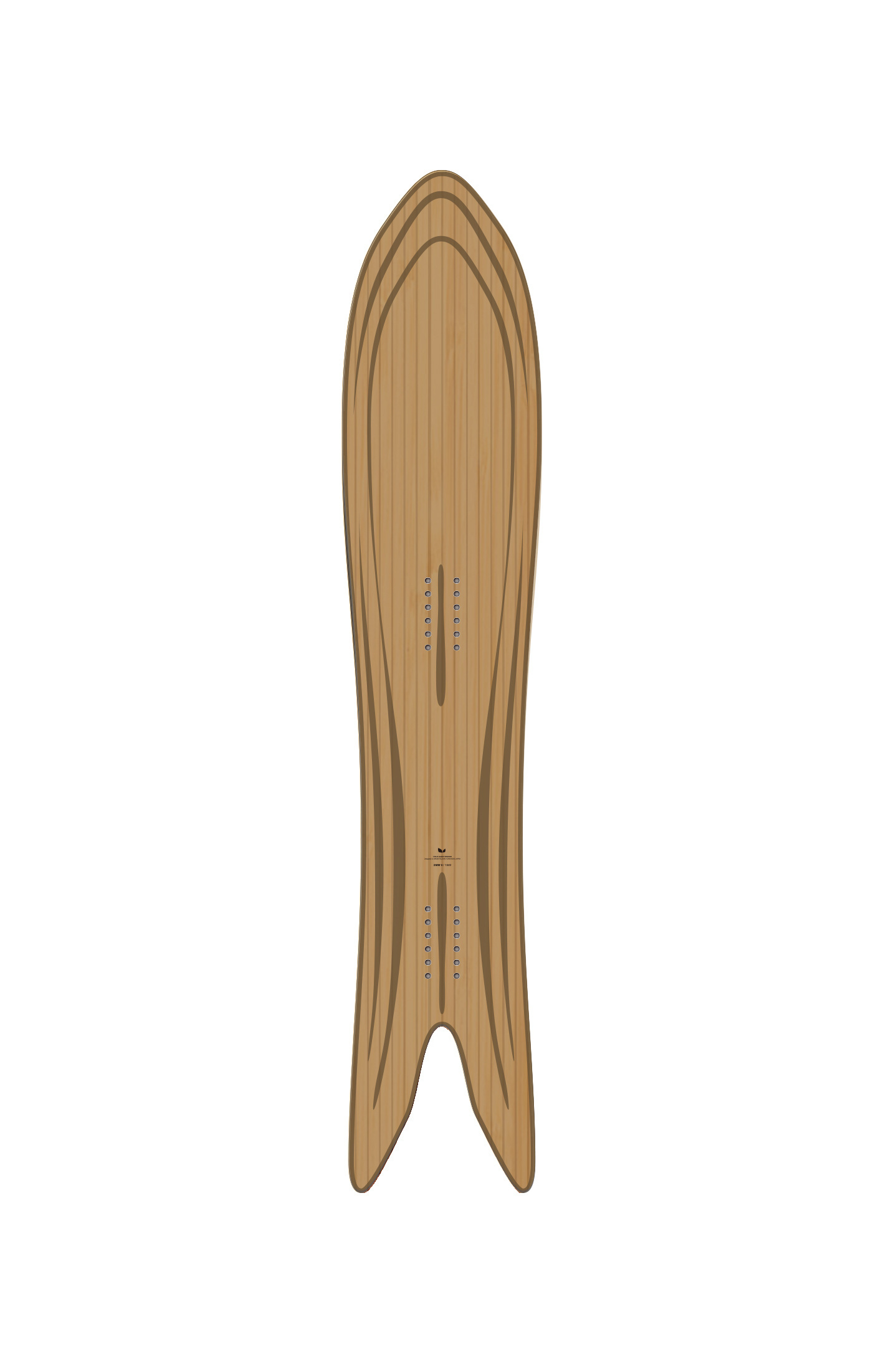

BAMBOO
SMM6
SMM6

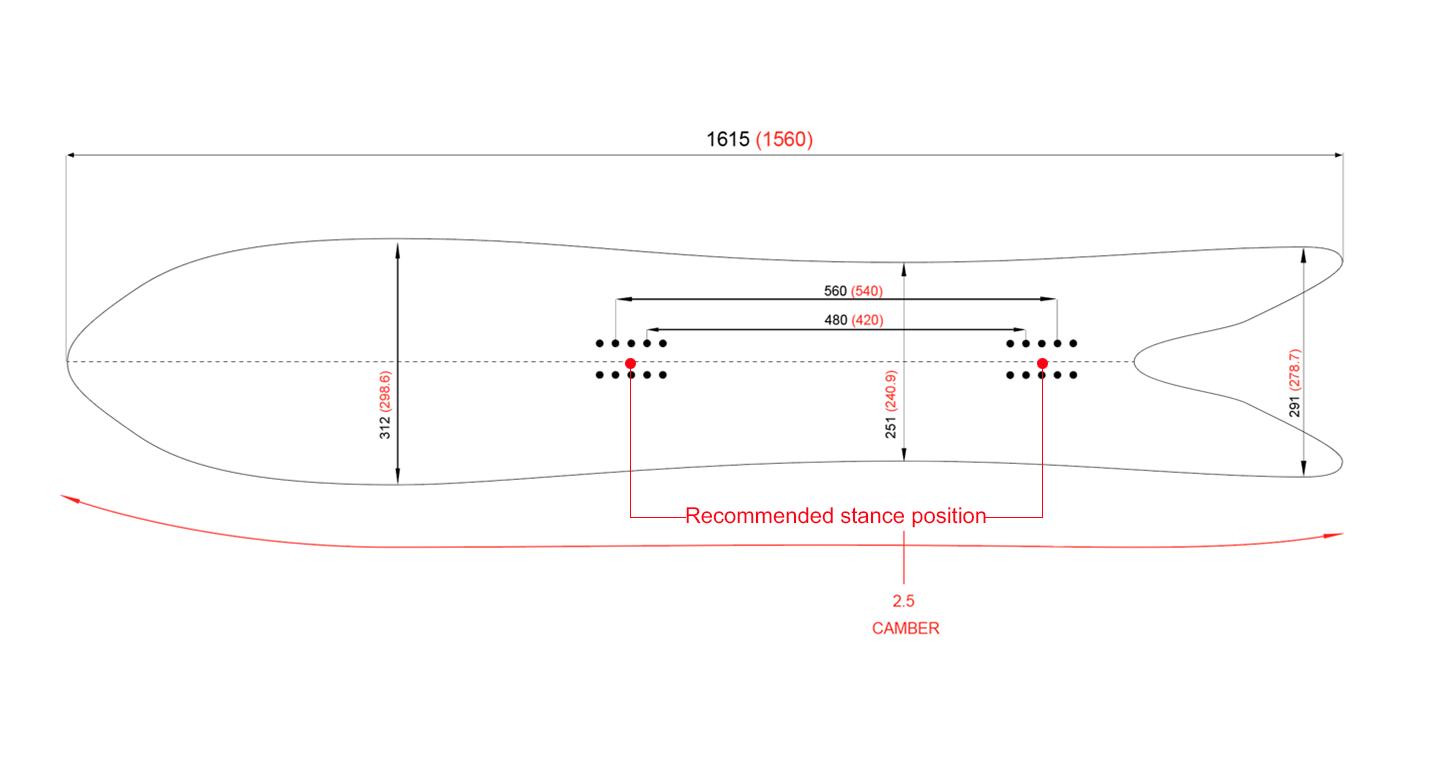

Spec

Length : 1615
Effective edge : 1148
Contact length : 1076.5
Nose : 312
Waist : 251
Tail : 291
CAM : 2.5
Stance : 480-560

Material

Core:natural Wood+Bamboo
Base:S903 Sintered Graphite


Please check it by e-mail in case of international shipment.


お知らせ : 一番下の項目に記載 LinkIcon









DESIGN

SMM6





2D+3D CORE
SMM, which is designed in S-SPEC 2D is SNOWBOARDS, that can be manipulated with stable feeling than ever. The two stage nose adopted to T6 enables to design a larger side curve than ordinal, so that it can capture snow surface larger to the instep. Therefore, it enables more natural and stable operation. Edging normally tends to be slow when making a turn. However, it can operate edging more smoothly and sharply by S-SPEC 2D shape and which is one of the features.


3D CORE
The WOOD CORE so far was constructed to the vertical direction.
In order to produce more fine torsion and flex to match with models, the 3D CORE produces more delicate feeling by constructing the wood core not only in one direction but also the 360 degrees direction.

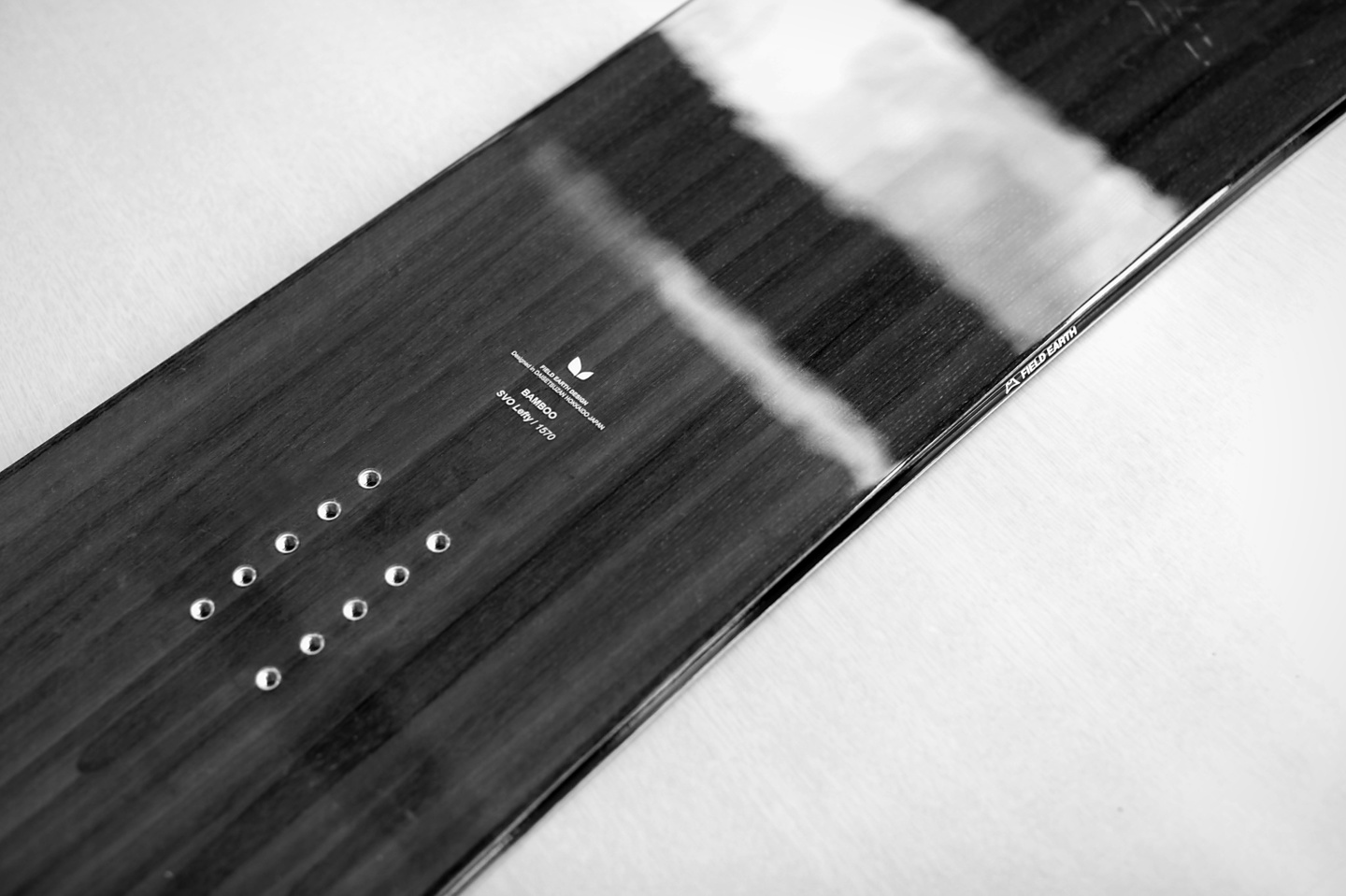

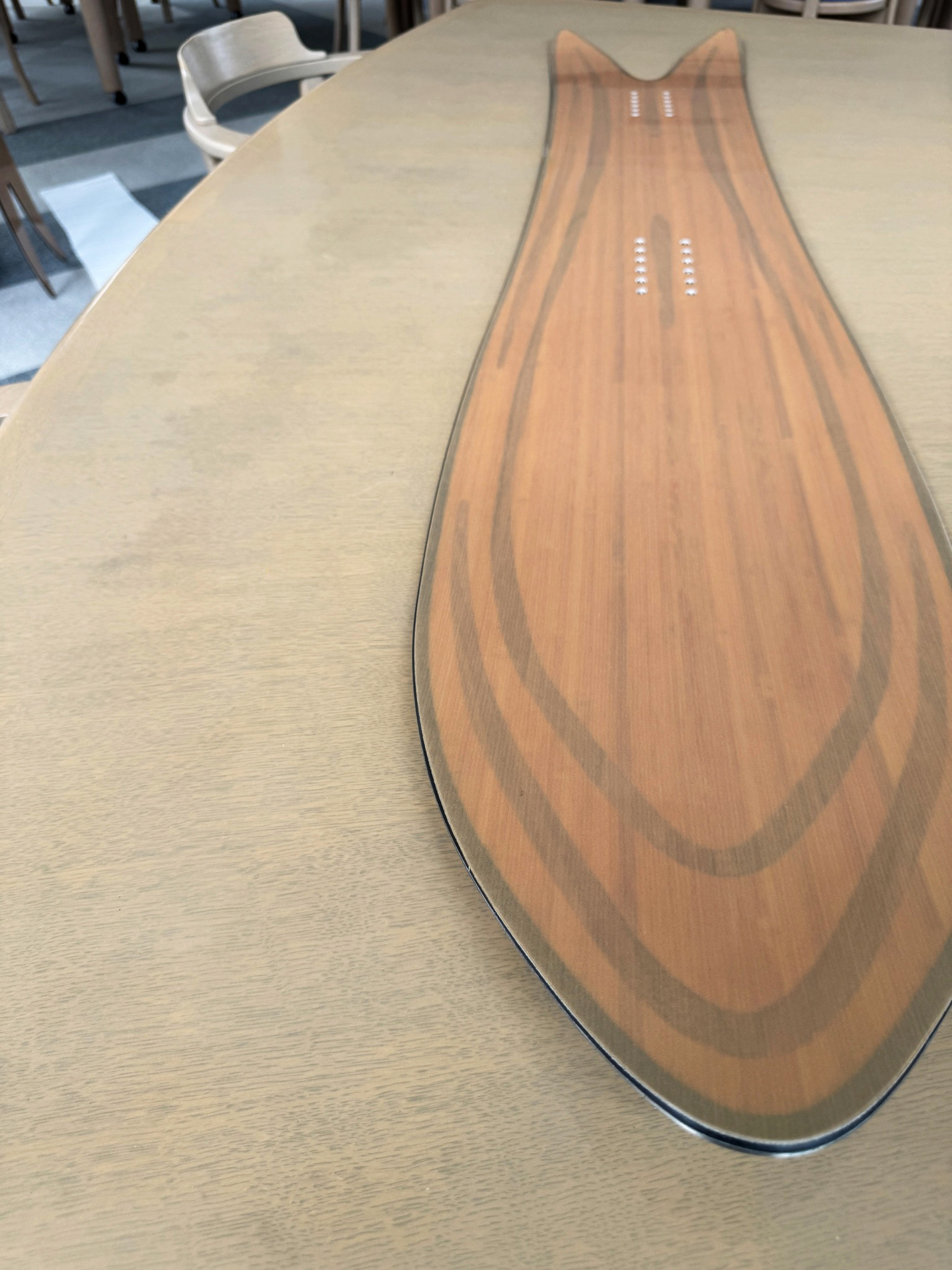

The WOOD, shaped as a line to BAMBOO CORE which can be seen from the deck surface, looks as if it is in vertical direction. However, it is not simply constructed in vertical direction. It is all connected by the sole side with various angles like the red lines shown in the figure.

Also, the 3D CORE is completely unified in total while it is designed its CORE in more detailed to add more tension towards a WOOD’s line or to lose the power in the diagonal direction. This enables you to experience very comfortable feeling as soon as you ride. The deck design that shows 3D CORE as a function design is well represent the characteristics of the BAMBOO LINE.




3D CORE
これまでのWOOD COREは、垂直方向に組まれていました。3D COREは、モデルに合わせて詳細なトーションとフレックスを作るために、一方向だけではなく360°方向に組むことで、より繊細なフィーリングを生み出します。

デッキ面から見えるBAMBOO COREにラインとして形取られているWOODは一見垂直に見えますが、これまでの単純な垂直方向ではなく、様々な角度をつけながら全てがソール側で一つに繋がっています。また、一つのWOODのラインにテンションを加えたり斜め方向に力が抜けるようになど、CORE自体を詳細にデザインしながら、全体では完全に一体化している3D COREは、乗ると直ぐに感じられる程、心地よいフィーリングを体感することができます。3D COREが機能デザインとして確認できるデッキデザインは、BAMBOO LINEの特徴を良く表現されています。






I m a g e s

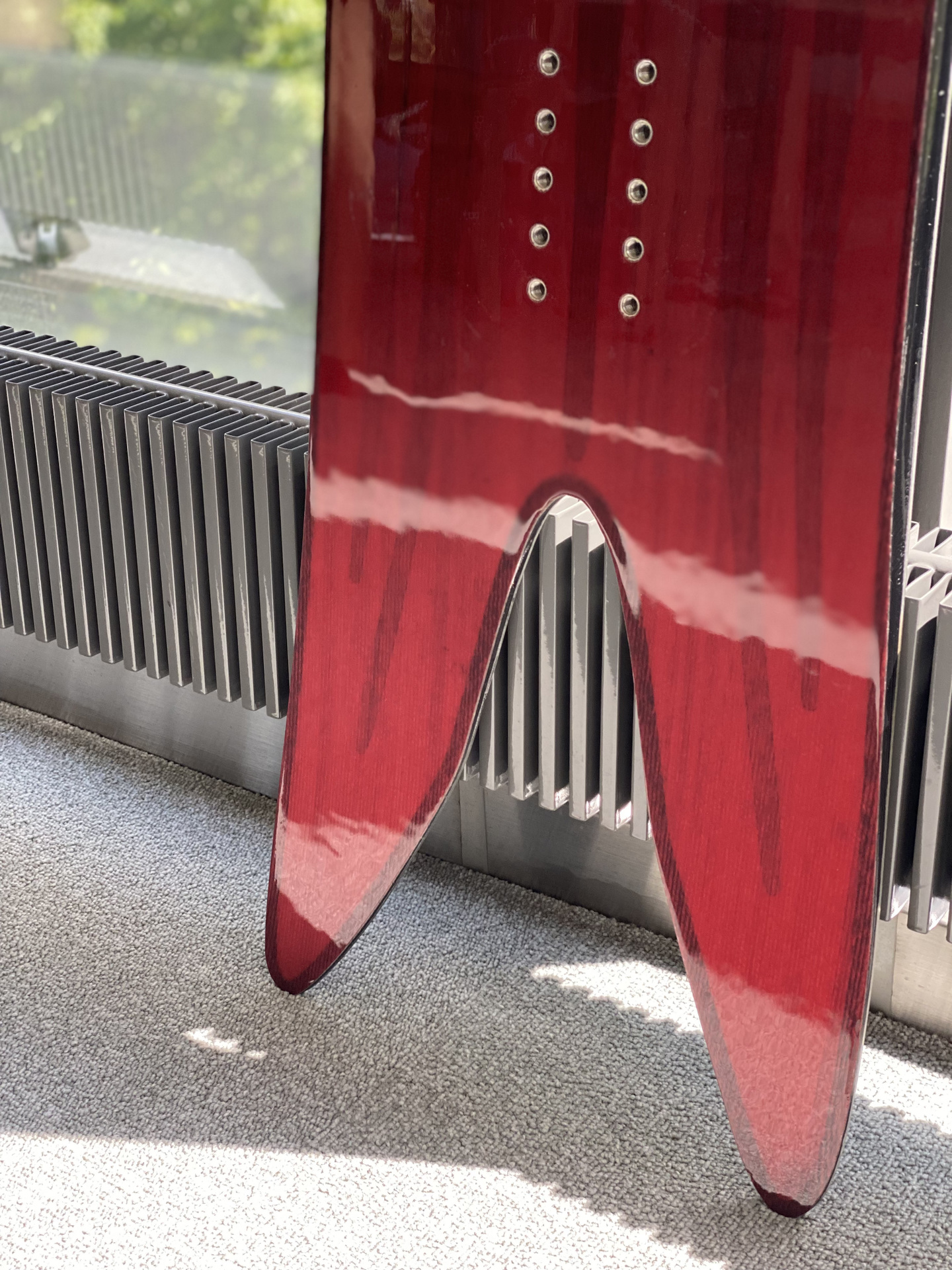

SMMのテールフィンは確実なエッジ操作を可能にします。ラーダーの加重方法で可変するテールフィンは大小様々なサイドカーブを生み出し的確なエッジ操作とともに粘りのあるスムーズなターンで加速していきます。

サイドカーブ長を長くデザインする為に生まれた2段階ノーズは圧雪でのカービングは勿論のこと、パウダー滑走時のフロートにも役に立っています。また、乗り位置をセンター付近に設定し雪面と板が可能な限り平行で失速にならないようにもデザインされています。スピードになったまま粘り強く的確なターンで雪山を攻めましょう。


BAMBOO LINE WOOD CORE
BAMBOO LINEのウッドコアは世界的に見ても最も複雑な構造の一つです。
通常は垂直方向につなげられた単純構造ですが、BAMBOO LINEは立体に削り出し異なる素材同士を複雑なブロックをはめこむように一体化させ一つのコアにしています。このことで、単純なトーションしかできなかったこれまでのコアに比べ、より複雑で繊細なフィーリングで操作することができ、よりターンの幅を広げることができます。

RIDER : SAORI TOBA






SMM6
SMM6
SMM6
SMM6
SMM6
SMM6
